Bread80

Polishing off the second revision of the

* Key bed repositioned by a few fractions of a millimetre.
* Diode footprint tweaked for easier hand soldering.
* Moved a couple of diodes which were uncomfortably close the connectors.
* Patched up all the traces affected by the above.

I still have a couple of minor items on the todo list but this is very close to being ready for the fab.

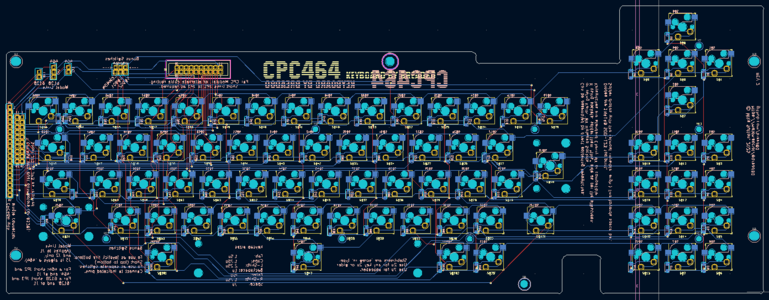

Kicad PCB layout of the keyboard. (I probably should have turned off the rear silkscreen).
